• assigned to flow of compressed air, nitrogen,argon, carbon dioxide in welding and metal cutting
• working temp.: from -30°C to 70°C

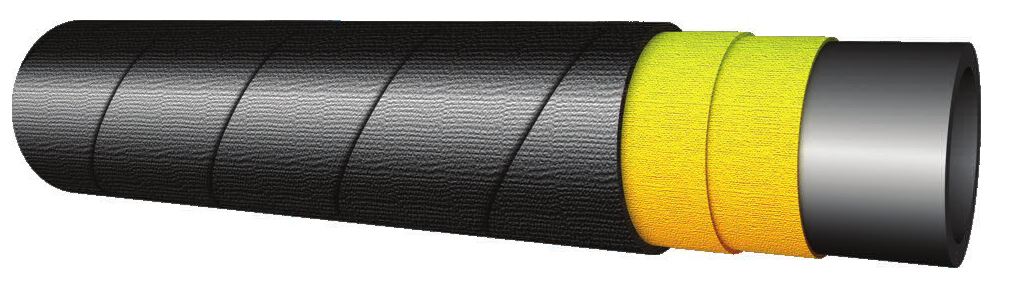

• tube: EPDM/SBR, black, smooth
• reinforcement: textile, wrapped
• cover: EPDM/SBR, black, smooth or corrugated
Inside diameter mm |
Wall thickness (approx.) mm |
Working pressure MPa |
Bursting pressure MPa |
Length max m |
4 |
3,5 |
2 |
6 |
50 |
5 |
3,5 |
2 |
6 |
50 |
6,3 |
3,5 |
2 |
6 |
50 |
8 |
3,5 |
2 |
6 |
50 |
9 |
3,5 |
2 |
6 |
50 |
10 |
3,5 |
2 |
6 |
50 |
12,5 |
3,5 |
2 |
6 |
50 |
16 |
3,7 |
2 |
6 |
50 |
20 |
5,3 |
2 |
6 |
40 |
25 |
5,3 |
2 |
6 |
40 |
31,5 |
6,3 |
2 |
6 |
40 |
35 |
6,6 |
2 |
6 |
20 |
38 |
6,7 |
2 |
6 |
20 |
40 |
6,7 |
2 |
6 |
20 |
45 |
6,8 |
2 |
6 |
20 |
50 |
6,8 |
2 |
6 |
20 |
PN-EN-559
PN-EN ISO 3821
PN-EN ISO 1307
