• high quality, multifunctional and flexible hose assigned to flow of hot water and saturated steam with pressure 0.6 MPa
• working temperature up to 165°C
• used in industrial devices
• tube: EPDM, black, smooth
• reinforcement: textile
• cover: EPDM, black with cloth impression, resistant to atmospheric factors, high temperatures and ozone
• high quality, multifunctional and flexible hose assigned to flow of hot water and saturated steam with pressure 0.6 MPa
• working temperature up to 165°C
• used in industrial devices
• tube: EPDM, black, smooth
• reinforcement: textile
• cover: EPDM, black with cloth impression, resistant to atmospheric factors, high temperatures and ozone

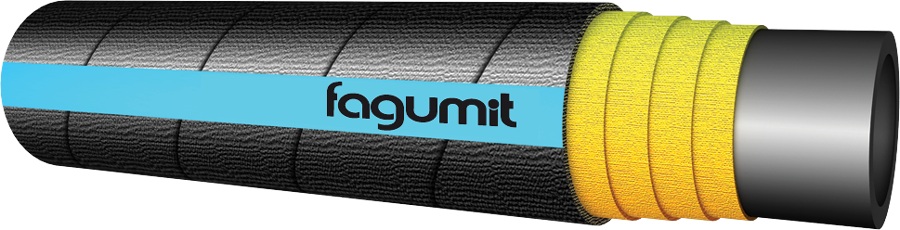

• Type D - delivery hoses, reinforcement: textile, these hoses can be produced with copper coils

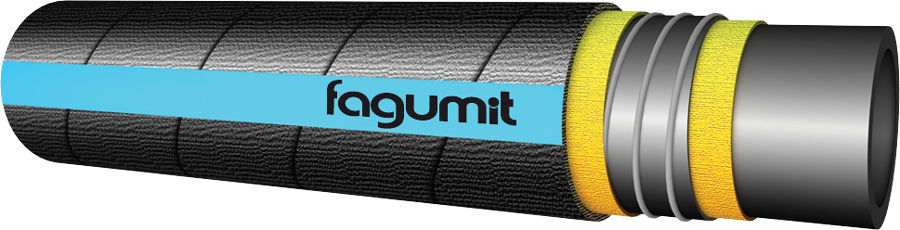

• Type SD - suction-delivery hoses with subpressure up to 0.063 Mpa, reinforcement: textile and one or two steel wire coils. High fatigue strength provides long working life of the hose.
Inside diameter
mm |
Wall thickness (approx.)
mm |
Working pressure
MPa
|
Bursting pressure
MPa |
Length max
m |
| |
Typ D
|
Typ SD
|
Typ D/ Typ SD
|
Typ D/ Typ SD
|
Typ D
|
Typ SD
|
| 12,5 |
5,3 |
--- |
0,6 |
6 |
20 |
---- |
| 16 |
5,5 |
--- |
0,6 |
6 |
40 |
--- |
| 19 |
5,5 |
--- |
0,6 |
6 |
40 |
20 |
| 20 |
5,5 |
6 |
0,6 |
6 |
40 |
20 |
| 25 |
5,5 |
6 |
0,6 |
6 |
40 |
20 |
| 31,5 |
6,5 |
6,5 |
0,6 |
6 |
40 |
20 |
| 35 |
7 |
8 |
0,6 |
6 |
20 |
20 |
| 38 |
7 |
8 |
0,6 |
6 |
20 |
20 |
| 40 |
7 |
8 |
0,6 |
6 |
20 |
20 |
| 45 |
7,2 |
8 |
0,6 |
6 |
20 |
20 |
| 50 |
7,2 |
8 |
0,6 |
6 |
20 |
20 |
| 63 |
8,5 |
10 |
0,6 |
6 |
10 |
10 |
| 70 |
8,5 |
10 |
0,6 |
6 |
10 |
10 |
| 75 |
8,5 |
10 |
0,6 |
6 |
10 |
10 |
| 80 |
8,5 |
10 |
0,6 |
6 |
10 |
10 |
| 90 |
8,5 |
10 |
0,6 |
6 |
10 |
10 |
| 100 |
9 |
11 |
0,6 |
6 |
10 |
10 |
WT - 46/06
WT - 22/96
PN-EN ISO 6134
PN-EN ISO 1307
