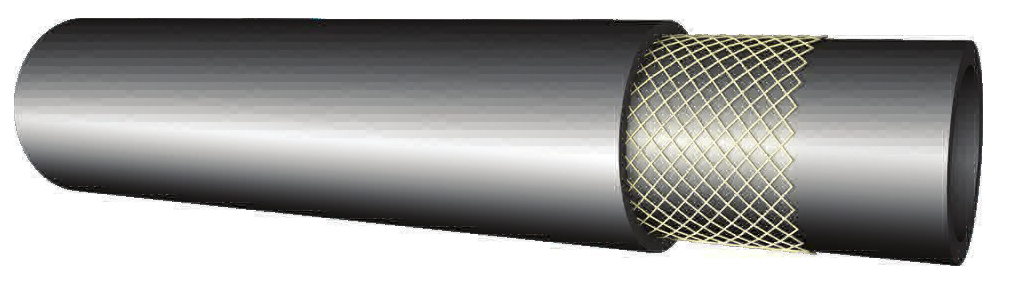

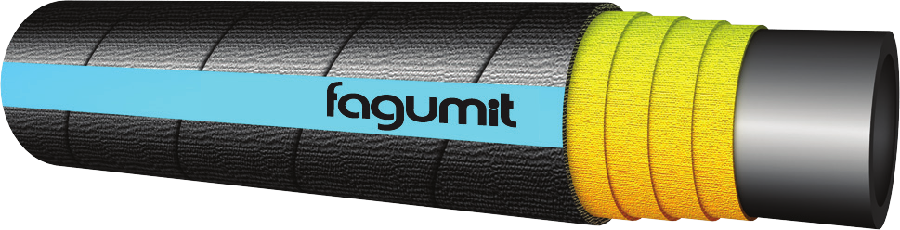

• high quality, multifunctional and flexible hose assigned to flow of hot water and saturated steam with pressure 0.4 MPa
• working temp. up to 143°C
• used in industrial devices
• tube: EPDM/SBR, black, smooth
• reinforcement: textile
• cover: EPDM/SBR, black, smooth or with cloth impression, resistant to atmospheric factors, high temperatures and ozone
• these hoses can be produced as coloured ones
Inside diameter
mm | Wall thickness (approx.)
mm | Working pressure
MPa | Bursting pressure
MPa | Length max
m |
|---|
| 5 |
4 |
0,4 |
4 |
50 |
| 6 |
4 |
0,4 |
4 |
50 |
| 8 |
4 |
0,4 |
4 |
50 |
| 10 |
4 |
0,4 |
4 |
50 |
| 12,5 |
4 |
0,4 |
4 |
50 |
| 16 |
4 |
0,4 |
4 |
50 |
| 20 |
5 |
0,4 |
4 |
40 |
| 25 |
5 |
0,4 |
4 |
40 |
| 31,5 |
5,2 |
0,4 |
4 |
40 |
| 35 |
5,8 |
0,4 |
4 |
40 |
| 38 |
5,8 |
0,4 |
4 |
20 |
| 40 |
5,8 |
0,4 |
4 |
20 |
| 45 |
6,5 |
0,4 |
4 |
20 |
| 50 |
6 |
0,4 |
4 |
20 |
| 63 |
6,5 |
0,4 |
4 |
10 |
| 75 |
6,5 |
0,4 |
4 |
10 |
| 80 |
6,5 |
0,4 |
4 |
10 |
| 90 |
6,5 |
0,3 |
3 |
10 |
| 100 |
6,5 |
0,3 |
3 |
10 |
| 110 |
6,5 |
0,3 |
3 |
10 |
WT-15/96
PN-EN ISO 1307
PN-86/C-94250/42
