- High quality, resistant hose assigned to conveying foodstuffs that require the use of rubber without smell and taste.
- Best for wine transport as well as acidic food with pH ≤4,5
- Made from parts free of harmful substances, not impairing the health properties of the product.
- Working temp.: from-30C up to +70, periodically up to 140C during rinsingof the hose with hot water or steam
- tube: EPDM, white, smooth
- cover: EPDM/SBR red with cloth impression
- Reinforcement: textile

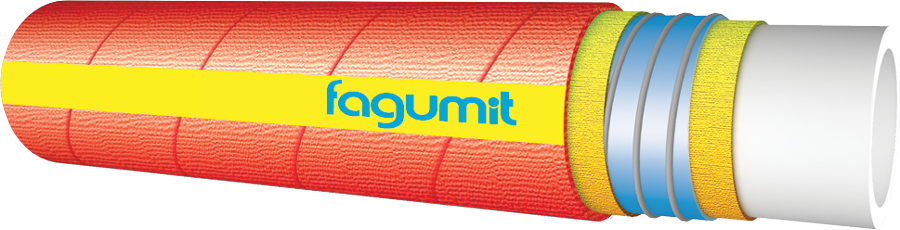

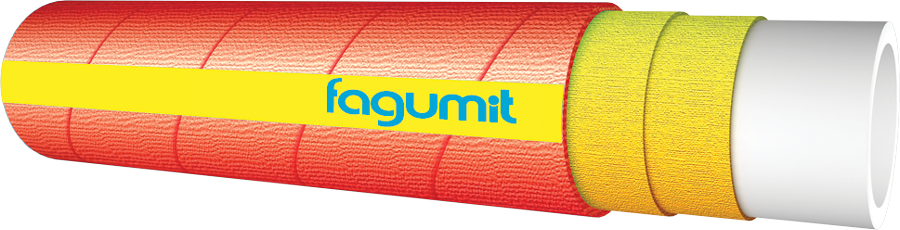

- Type D -delivery hoses, type SD suction-delivery hoses with steel wire spiral, subpressure 0.063 MPa
Product meets the requirements of FDA. Report no: T31720200903SC-01
Inside diameter
mm |
Wall thickness (approx.)
mm |
Working pressure
MPa
|
Bursting pressure
MPa |
Length max
m |
| |
Typ D / Typ SD
|
Typ D/ Typ SD
|
Typ D/ Typ SD
|
Typ D / Typ SD
|
| 8 |
5,3 / --- |
2,5 / --- |
7,5 / --- |
20 / --- |
| 10 |
5,3 / --- |
2,5 / --- |
7,5 / --- |
20 / --- |
| 12,5 |
5,3 / --- |
2,5 / --- |
7,5 / --- |
20 / --- |
| 16 |
5,3 / --- |
2,5 / --- |
7,5 / --- |
40 / --- |
| 20 |
5,3 / 6 |
2 |
6 |
40 / 20 |
| 25 |
5,3 / 6 |
2 |
6 |
40 / 20 |
| 31,5 |
5,5 / 6,5 |
1,5 |
4,5 |
20 / 20 |
| 35 |
5,7 / 6,5 |
1,2 |
3,6 |
20 |
| 38 |
5,8 / 6,5 |
1,2 |
3,6 |
20 |
| 40 |
5,8 / 6,5 |
1,2 |
3,6 |
20 |
| 45 |
6 / 6,5 |
1 |
3 |
20 |
| 50 |
6 / 6,5 |
1 |
3 |
20 |
| 63 |
6 / 7,5 |
0,7 |
2,1 |
10 |
| 70 |
6 / 7,5 |
0,7 |
2,1 |
10 |
| 75 |
6 / 7,5 |
0,7 |
2,1 |
10 |
| 80 |
6 / 7,5 |
0,7 |
2,1 |
10 |
| 90 |
6 / 7,5 |
0,5 |
1,5 |
10 |
| 100 |
6 / 7,5 |
0,5 |
1,5 |
10 |
| 110 |
6 / 7,5 |
0,5 |
1,5 |
10 |
| 125 |
7 / 8 |
0,4 |
1,2 |
10 |
| 150 |
7 / 9,5 |
0,3 |
0,9 |
10 |
| 200 |
8,5 / 10 |
0,2/0,3 |
0,6/0,9 |
6 |
| 250 |
8,5 / 11 |
0,2 |
0,6 |
10 |
| 300 |
8,5 / 11 |
0,2 |
0,6 |
6 |
WT-17/96
PN-EN ISO 1307
PN-75/C-94250/45
PN-76/C-94250/64
WT-13/95
