Hoses

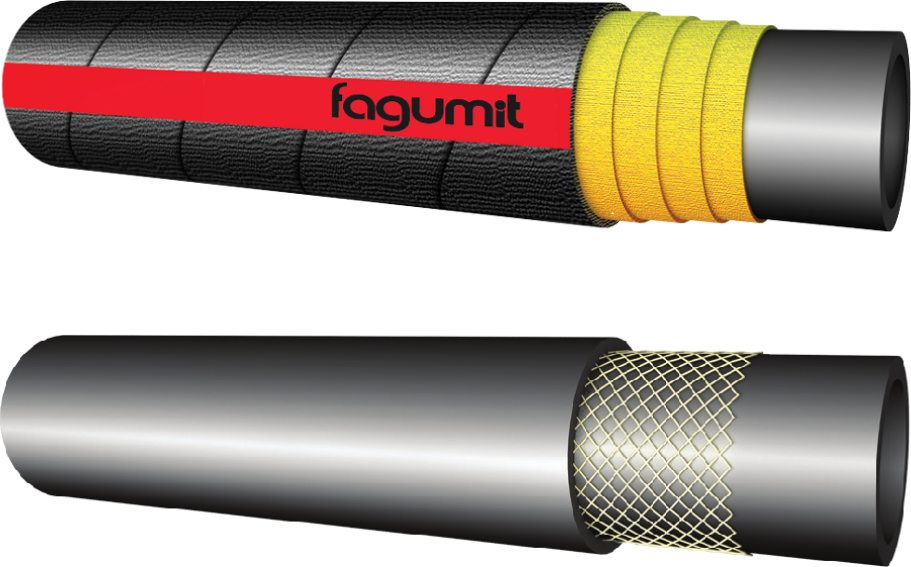

EPDM ST – 20

EPDM ST – 20
EPDM ST – 20
  • multifunctional hose elastic multipurprose, resistant to high temperature, designed for compressed air, water, chemicals, acid solutions, AdBlue® (urea solution 32,5%), injection molds cooling system

  • working temp.: from -40°C up to +140°C • tube: rubber, black, smooth, EPDM

  • reinforcement: textile

  • cover: EPDM, rubber black /red /blue, smooth or with cloth impression, resistant to atmospheric factors



Inside diameter
mm
Wall thickness (approx.)
mm
Working pressure
MPa
Bursting pressure
MPa
Length max
m
6 3,5 2 6 50
8 3,5 2 6 50
10 3,5 2 6 50
13 4 2 6 50
16 4 2 6 50
19 4,5 2 6 50
25 6 2 6 40
32 6 2 6 40
38 6,5 2 6 40



KOZ- 10/2016

KOZ-41/2017

PN-EN ISO 1307
