• assigned to suction and pumping of faeces with subpressure up to 0.063 MPa
• working temp.: from -30°C up to 60°C

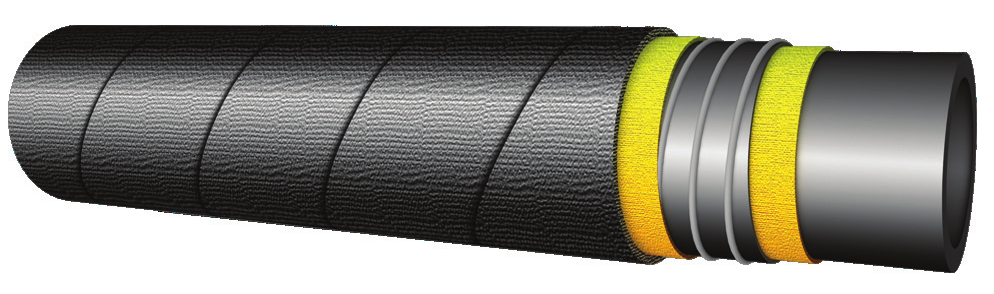

• tube: EPDM/SBR, black, smooth
• reinforcement: textile and steel wire coil
• cover: EPDM/SBR, black,with cloth impression, resistant to atmospheric factors
Inside diameter
mm |
Wall thickness (approx.)
mm |
Working pressure
MPa |
Bursting pressure
MPa |
Length max
m |
| 63 |
7,5 |
0,7 |
2,1 |
10 |
| 76 |
7,5 |
0,7 |
2,1 |
10 |
| 80 |
7,5 |
0,7 |
2,1 |
10 |
| 90 |
7,5 |
0,5 |
1,5 |
10 |
| 100 |
7,5 |
0,5 |
1,5 |
10 |
| 110 |
7,5 |
0,5 |
1,5 |
10 |
| 125 |
8 |
0,4 |
1,2 |
10 |
| 150 |
9,5 |
0,3 |
0,9 |
10 |
PN-EN ISO 1307
ZN-86/MPChiL-G/WL-35
