FIRE SD

FIRE SD
FIRE SD

  • assigned to suction and pumping of water and water solutions of fire extinguishing agents

  • applied as conduits between a water tank and a water pump in fire - fighting units

  • working temp.: from -30°C

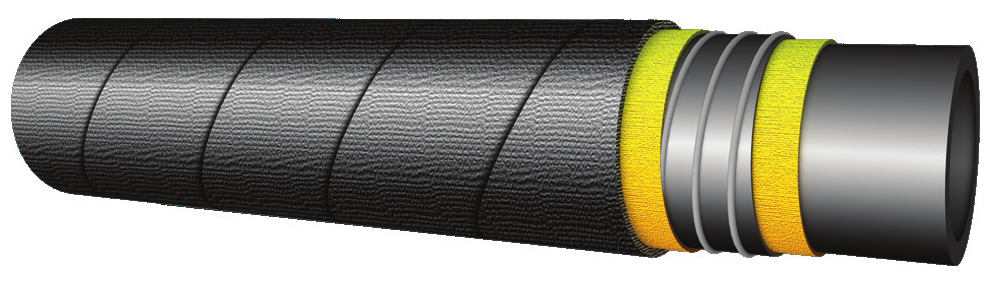

  • tube: EPDM/SBR, black, smooth

  • reinforcement: textile, steel wire coil

  • cover: EPDM/SBR, textile clothing

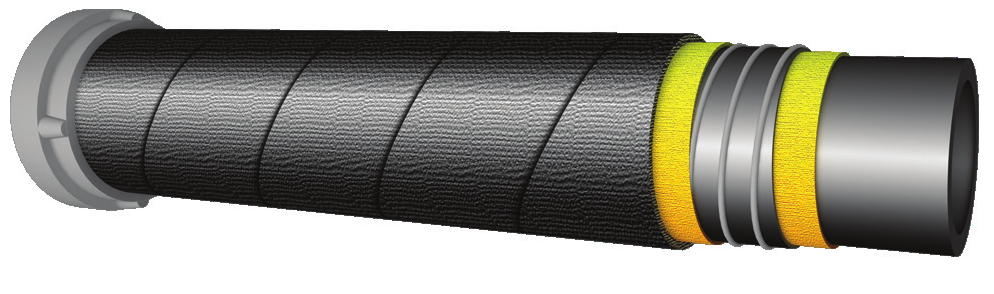

  • It is possible to buy the hoses with clenched couplings




Inside diameter x lenght of section mm

Wall thickness (approx.)
mm		Working pressure
MPa		Attestation Number
52x3920 6,5 0,4 ---
75x1500 7,5 0,4 ---
110x1500 7,5 0,4 0324/2008
110x2400 7,5 0,4 0324/2008





Inside diameter
mm		Wall thickness (approx.)
mm		Working pressure/Test pressure Length max
m
45 7 0,3/0,6 6
50 7 0,3/0,6 6
70 7,5 0,3/0,6 6
75 7,5 0,3/0,6 6
90 7,5 0,3/0,6 6
100 7,5 0,3/0,6 6
110 7,5 0,3/0,6 6
125 9 0,3/0,6 10
140 9 0,3/0,6 10
150 9 0,3/0,6 10



PN-88/M-51155

PN-EN ISO 14557 typ A

PN-EN ISO 1307
