Hoses

FIRE

FIRE
FIRE
  • assignet to the extinguishing devices with woassignedrking pressure up to 4.0 MPa

  • working temp.: from -30°C up to 60°C

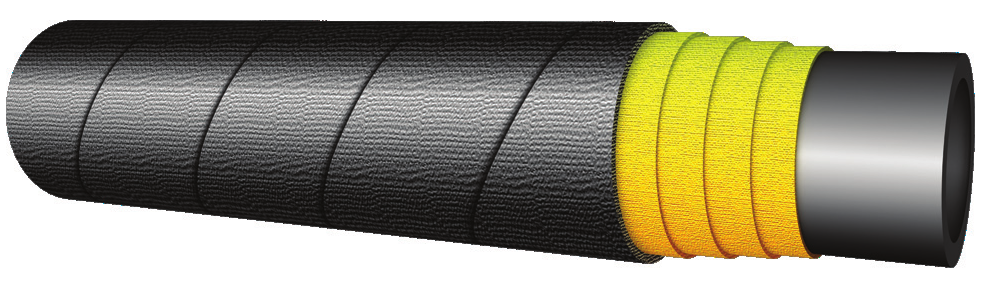

  • tube: SBR, black, smooth

  • reinforcement: textile

  • cover: EPDM/SBR, black, smooth (type I) or with cloth impression (type II), resistant to atmospheric factors



Inside diameter
mm
Wall thickness (approx.)
mm
Working pressure
MPa
Bursting pressure
MPa
Length max
m
Typ I
8 3,6 2 6,3 50
10 3,6 2 6,3 50
12,5 3,6 2 6,3 50
16 3,6 2 6,3 50
Typ II
8 5,3 4 12 20
10 5,3 4 12 20
12,5 5,3 4 12 20
16 5,3 4 12 20


WT-35/98

PN-EN ISO 1307
