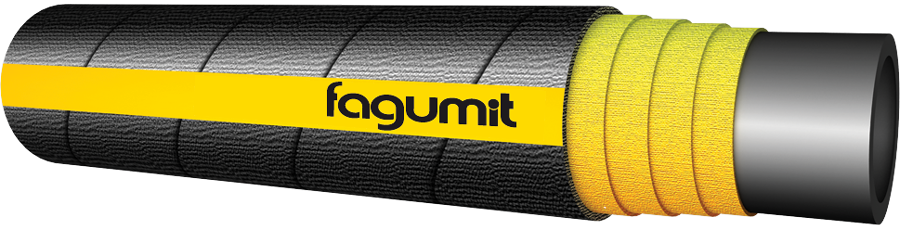

• robust and resistant to heavy conditions thick wall hose, applied in buiding industry and quarries, assigned to pumping of plaster mortars with working pressure 2.0 MPa
• working temp.: from -35°C up to 60°C
• tube: BR/NR , black, smooth with abrasive wear max. 70mm3 or with abrasive wear max 40mm3
• reinforcement: textile
• cover: EPDM/SBR, black with cloth impression, resistant to atmospheric factors
• resistance to kinking and robust structure allow to use the hose in heavy conditions
Inside diameter
mm |
Wall thickness (approx.)
mm |
Working pressure
MPa |
Bursting pressure
MPa |
Length max
m |
| 70 |
10 |
2 |
6 |
10 |
| 75 |
10 |
2 |
6 |
10 |
| 80 |
14 |
2 |
6 |
10 |
| 90 |
14 |
2 |
6 |
10 |
| 100 |
15 |
2 |
6 |
10 |
| 110 |
15 |
2 |
6 |
10 |
| 125 |
15 |
2 |
6 |
10 |
WT-6/95
PN-EN ISO 1307
