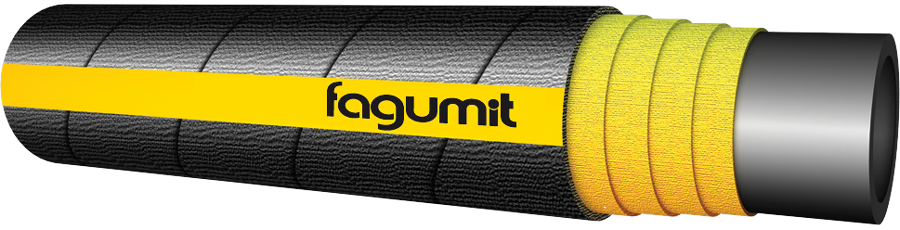

• robust and resistant, very abrasion and heavy working conditions resisting, thick wall hose, applied in building industry and quarries
• assigned to pumping of plaster mortars
• working temp.: from -35°C up to 60°C
• tube: BR/NR, black, smooth with abrasive wear max. 70mm3 or with abrasive wear max 40mm3
• reinforcement: textile
• cover: EPDM/SBR, black with cloth impression, resistant to atmospheric factors
Inside diameter
mm |
Wall thickness (approx.)
mm |
Working pressure
MPa |
Bursting pressure
MPa |
Length max
m |
| 25 |
5,5 |
1,6 |
4,5 |
40 |
| 31,5 |
5,7 |
1,6 |
4,5 |
40 |
| 35 |
7,3 |
1,6 |
4,5 |
20 |
| 38 |
7,3 |
1,6 |
4,5 |
20 |
| 40 |
7,4 |
1,6 |
4,5 |
20 |
| 50 |
7,5 |
1,6 |
4,5 |
20 |
| 60 |
9,5 |
1,6 |
4,5 |
10 |
| 63 |
9,5 |
1,6 |
4,5 |
10 |
| |
| 25 |
8,5 |
4 |
12 |
40 |
| 31,5 |
8,5 |
4 |
12 |
40 |
| 40 |
10,5 |
4 |
12 |
20 |
| 50 |
10,5 |
4 |
12 |
20 |
| 63 |
13 |
4 |
12 |
10 |
PN-75/C-94250/50
KOZ-99/06
