• assigned to conveying foodstuffs with alcohol content (concentration max 96 %) and acid food with pH ≤4,5 which require application of odourless and tasteless rubber
• working temp.: from -30°C up to 70°C, periodically up to 140°C during rinsing of the hose with hot water or steam
• tube: EPDM, white, smooth
• reinforcement: textile
• cover: EPDM/SBR blue, red or white with cloth impression
Product meets the requirements of FDA. Report no: T31720200903SC-01
Inside diameter
mm |
Wall thickness (approx.)
mm |
Working pressure
MPa
|
Bursting pressure
MPa |
Length max
m |
| |

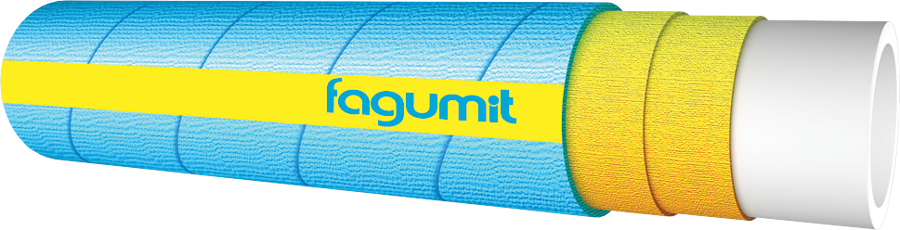

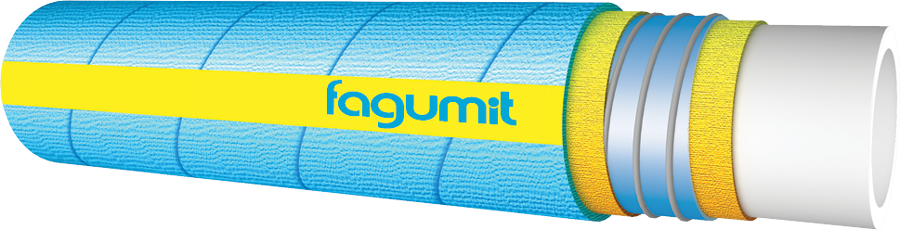

Typ D / Typ SD
|
Typ D/ Typ SD
|
Typ D/ Typ SD
|
Typ D / Typ SD
|
| 8 |
5,3 / --- |
2,5 |
7,5 |
20 / --- |
| 10 |
5,3 / --- |
2,5 |
7,5 |
20 / --- |
| 12,5 |
5,3 / --- |
2,5 |
7,5 |
20 / --- |
| 16 |
5,3 / --- |
2,5 |
7,5 |
40 / --- |
| 20 |
5,3 / 6 |
2 |
6 |
40 / 20 |
| 25 |
5,3 / 6 |
2 |
6 |
40 / 20 |
| 31,5 |
5,5 / 6,5 |
1,5 |
4,5 |
20 / 20 |
| 35 |
5,7 / 6,5 |
1,2 |
3,6 |
20 |
| 38 |
5,8 / 6,5 |
1,2 |
3,6 |
20 |
| 40 |
5,8 / 6,5 |
1,2 |
3,6 |
20 |
| 45 |
6 / 6,5 |
1 |
3 |
20 |
| 50 |
6 / 6,5 |
1 |
3 |
20 |
| 63 |
6 / 7,5 |
0,7 |
2,1 |
10 |
| 70 |
6 / 7,5 |
0,7 |
2,1 |
10 |
| 75 |
6 / 7,5 |
0,7 |
2,1 |
10 |
| 80 |
6 / 7,5 |
0,7 |
2,1 |
10 |
| 90 |
6 / 7,5 |
0,5 |
1,5 |
10 |
| 100 |
6 / 7,5 |
0,5 |
1,5 |
10 |
| 110 |
6 / 7,5 |
0,5 |
1,5 |
10 |
| 125 |
7 / 8 |
0,4 |
1,2 |
10 |
| 150 |
7,0 / 9,5 |
0,3 |
0,9 |
10 |
| 200 |
8,5 / 10 |
0,3 |
0,9 |
6 |
| 250 |
8,5 / 11 |
0,2 |
0,6 |
10 |
| 300 |
8,5/ 11 |
0,2 |
0,6 |
6 |
WT-17/96
PN-EN ISO 1307
PN-75/C-94250/45
PN-76/C-94250/64
WT-13/95
