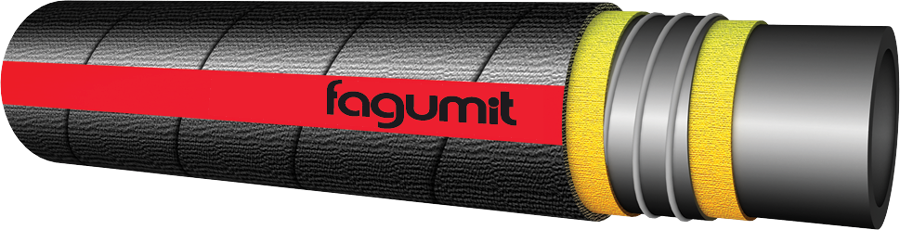

• high quality, resistant hose assigned to suction and pumping of water solutions of acids and bases with subpressure up to 0.063 MPa
• adapted to flow of solutions of: nitric acid with concentration up to 20%, sulfuric acid with concentration up to 80%, hydrochloric acid with concentration up to 36%, acetic acid, sodium hydroxide, ammonia water solutions and light chemicals with any concentration
• working temp.: from -30°C up to 65°C
• tube: EPDM, black, smooth
• reinforcement: textile, and one or two steel wire coils
• cover: EPDM, black, resistant to ageing, atmospheric factors and ozone
• high fatigue strength provides long working life of the hose
Inside diameter
mm | Wall thickness (approx.)
mm | Working pressure
MPa | Bursting pressure
MPa | Length max
m |
|---|
| 20 |
6 |
2 |
6 |
20 |
| 25 |
6 |
2 |
6 |
20 |
| 31,5 |
6,5 |
1,5 |
4,5 |
20 |
| 35 |
6,5 |
1,2 |
3,6 |
20 |
| 38 |
6,5 |
1,2 |
3,6 |
20 |
| 40 |
6,5 |
1,2 |
3,6 |
20 |
| 45 |
6,5 |
1 |
3 |
20 |
| 50 |
6,5 |
1 |
3 |
20 |
| 60 |
7,5 |
0,7 |
2,1 |
10 |
| 63 |
7,5 |
0,7 |
2,1 |
10 |
| 70 |
7,5 |
0,7 |
2,1 |
10 |
| 75 |
7,5 |
0,7 |
2,1 |
10 |
| 80 |
7,5 |
0,7 |
2,1 |
10 |
| 90 |
7,5 |
0,5 |
1,5 |
10 |
| 100 |
7,5 |
0,5 |
1,5 |
10 |
| 110 |
7,5 |
0,5 |
1,5 |
10 |
| 125 |
8 |
0,4 |
1,2 |
10 |
| 150 |
9,5 |
0,3 |
0,9 |
10 |
| 200 |
10 |
0,2 |
0,6 |
6 |
| 250 |
11 |
0,2 |
0,6 |
10 |
WT-24/96
PN-EN ISO 1307
