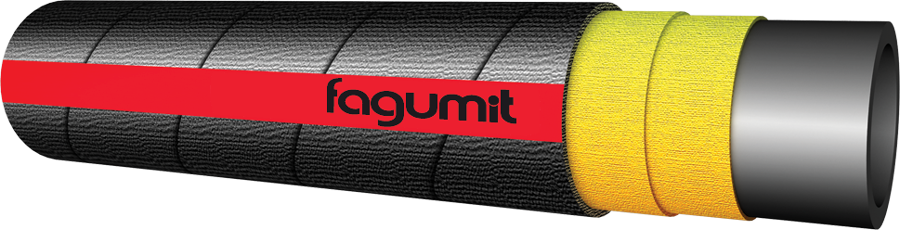

• multifunctional, flexible hose assigned to flow of solutions of: nitric acid with concentration up to 5%, hydrochloric acid with concentration up to 20%, sulfuric acid with concentration up to 50%, acetic acid, sodium hydroxide water solution, ammonia water solution with any concentraction
• working temp.: from -30°C up to +60°C

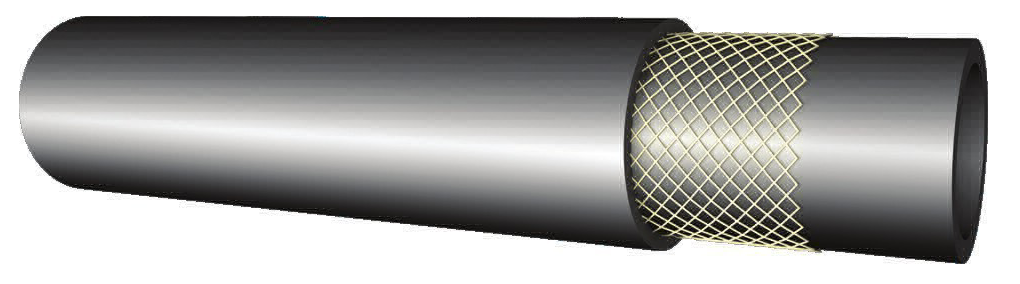

• tube: EPDM/SBR, black, smooth
• reinforcement: textile
• cover: EPDM/SBR, black, smooth or with cloth impression, resistant to atmospheric factors
• These hoses can be produced as coloured ones
Inside diameter
mm | Wall thickness (approx.)
mm | Working pressure
MPa | Bursting pressure
MPa | Length max
m |
|---|
| 6,3 |
3,5 |
0,6 |
1,8 |
50 |
| 8 |
3,5 |
0,6 |
1,8 |
50 |
| 10 |
3,5 |
0,6 |
1,8 |
50 |
| 12,5 |
3,5 |
0,6 |
1,8 |
50 |
| 16 |
3,7 |
0,6 |
1,8 |
50 |
| 20 |
3,8 |
0,6 |
1,8 |
50 |
| 25 |
4,1 |
0,6 |
1,8 |
40 |
| 31,5 |
4,3 |
0,6 |
1,8 |
40 |
| 35 |
5,8 |
1,2 |
3,6 |
20 |
| 38 |
5,8 |
1,2 |
3,6 |
20 |
| 40 |
5,8 |
1 |
3 |
20 |
| 45 |
6 |
1 |
3 |
20 |
| 50 |
6 |
1 |
3 |
20 |
| 60 |
6 |
0,7 |
2,1 |
10 |
| 63 |
6 |
0,7 |
2,1 |
10 |
| 75 |
6 |
0,7 |
2,1 |
10 |
| 80 |
6 |
0,7 |
2,1 |
10 |
| 90 |
6 |
0,5 |
1,5 |
10 |
| 100 |
6 |
0,5 |
1,5 |
10 |
| 110 |
6 |
0,5 |
1,5 |
10 |
| 125 |
6 |
0,4 |
1,2 |
10 |
| 150 |
6 |
0,3 |
0,9 |
10 |
| 200 |
6 |
0,2 |
0,5 |
6 |
| 250 |
7 |
0,2 |
0,5 |
10 |
| 300 |
7 |
0,2 |
0,5 |
6 |
WT-3/95
PN-EN ISO 1307
PN-86/C-94250/44
