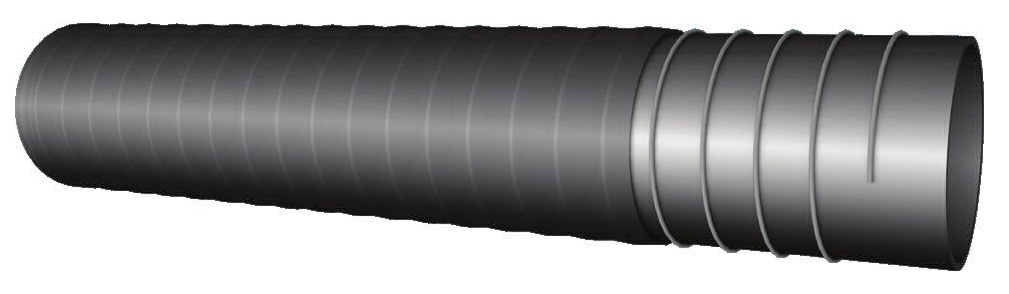

• assigned to conveying of the warm air into the engine and flow of the warm air into heating systems of vehicles
• working temp.: from -30°C up to 80°C
According to the structure there are two different kinds of these hoses:
Kind I - hoses with flanges
Inside diameter
mm | Test pressure
MPa | Length of sect.
m |
|---|
| 44 |
0,02 |
max 4 |
| 55 |
0,02 |
max 4 |
| 70 |
0,02 |
max 4 |
| 76 |
0,02 |
max 4 |
| 80 |
0,02 |
max 4 |
| 99 |
0,02 |
max 4 |
Kind II - cut hoses without flanges
Inside diameter
mm |
Test pressure
MPa |
Length of sect.
m |
| 44 |
0,02 |
Max 3,6 |
| 55 |
0,02 |
Max 3,6 |
| 70 |
0,02 |
Max 3,6 |
| 76 |
0,02 |
Max 3,6 |
| 80 |
0,02 |
Max 3,6 |
| 99 |
0,02 |
Max 3,6 |
ZN-90/MP-G/WL-5
PN-EN ISO 1307
