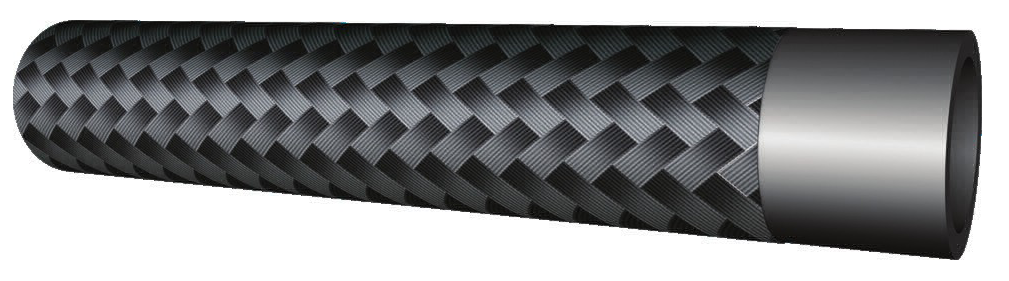

• light, very flexible fuel assigned to flow of fuels, petroleum products and grease
• working temp.: -30°C up to 85°C
• tube: resistant to fuels and oils, rubber, NBR, black, smooth
• cover: synthetic/cotton braid with high tensil
Inside diameter
mm |
Wall thickness (approx.)
mm
|
Working pressure
MPa |
Bursting pressure
MPa |
Min. bending radius
mm |
Length max
m |
| 3,2 |
7 |
1 |
3 |
40 |
50 |
| 3,5 |
7,5 |
1 |
3 |
45 |
50 |
| 4 |
8 |
1 |
3 |
45 |
50 |
| 4 |
9 |
1 |
3 |
45 |
50 |
| 5 |
10 |
1 |
3 |
50 |
50 |
| 6 |
11 |
1 |
3 |
50 |
50 |
| 6 |
12 |
1 |
3 |
50 |
50 |
| 7 |
12 |
1 |
3 |
50 |
50 |
| 7,5 |
12,5 |
1 |
3 |
50 |
50 |
| 8 |
15 |
1 |
3 |
60 |
50 |
| 10 |
17 |
1 |
3 |
70 |
50 |
| 12 |
18 |
1 |
3 |
85 |
50 |
DIN 73379
PN-EN ISO 1307
