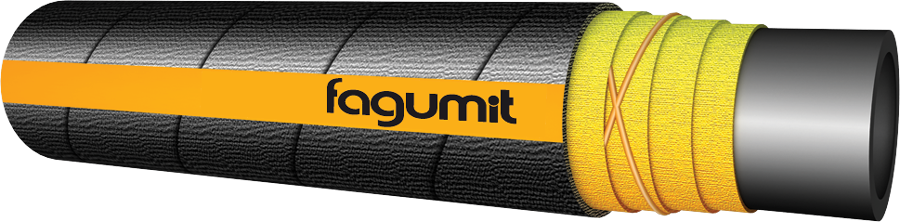

• assigned to filling and emptying of tanks used for liquified petroleum gas (LPG) and natural gas
• working temp.: from -30°C up to 70°C
• tube: rubber, NBR, black, resistant to gas permeability
• reinforcement: textile, wrapped and two crossed copper coils
• cover: rubber, CR, black, resistant to: atmospheric factors, abrasion, burning
• maintains high flexibility in positive and negative temperatures
• electric resistance: < 1x106 Ω/m
This product has the authorization No TDT-W-47/02 of Transport Engineering Supervision
Inside diameter
mm |
Wall thickness (approx.)
mm |
Working pressure
MPa |
Bursting pressure
MPa |
Min. bending radius
mm
|
Length max
m |
| 16 |
26 |
2,5 |
10 |
125 |
40 |
| 19 |
31 |
2,5 |
10 |
160 |
40 |
| 20 |
32 |
2,5 |
10 |
160 |
40 |
| 25 |
38 |
2,5 |
10 |
200 |
40 |
| 32 |
45 |
2,5 |
10 |
250 |
40 |
| 38 |
52 |
2,5 |
10 |
320 |
20 |
| 40 |
54 |
2,5 |
10 |
320 |
20 |
| 50 |
69* |
2,5 |
10 |
400 |
20 |
Examples of applied lengths of ready hose assemblies
| Inside diameter | Length max | End fitting |
|---|
| 16 |
0,8 |
3/4” - 3/4” |
| 16 |
4,8 |
3/4” - 1” |
| 16 |
5 |
3/4” - 1” |
| 16 |
6 |
3/4” - 1” |
To the order we can produce assemblies according to requirements of a customer
* Deviation ( requirement of standard 66 mm )
PN-EN ISO 1307
PN-EN 1762 Typ D
