• assigned to filling and dischargig of petroleum fuels with content of aromatic hydrocarbons up to 50 %, including bioethanol (fuel containing oxygen compounds up to 15 %) and biodiesel fuel (80 % of diesel oil and 20 % of biocomponents - esters)
• type SD - subpressure 0.063 MPa
• working temp.: from -30°C up to 70°C
• tube: NBR, black, smooth
• reinforcement: textile and two crossed copper coils, type SD - steel wire coil
• cover: CR, black, with cloth impresion, resistant to atmospheric factors

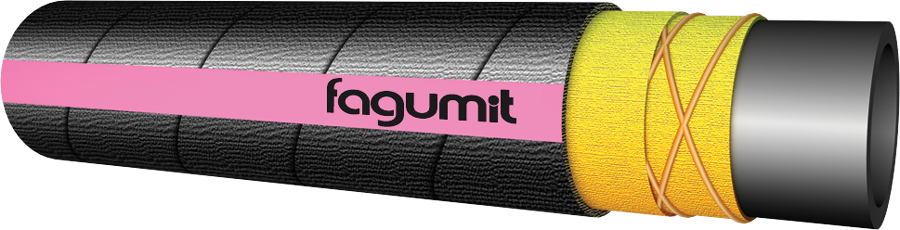

• discharge hose type D

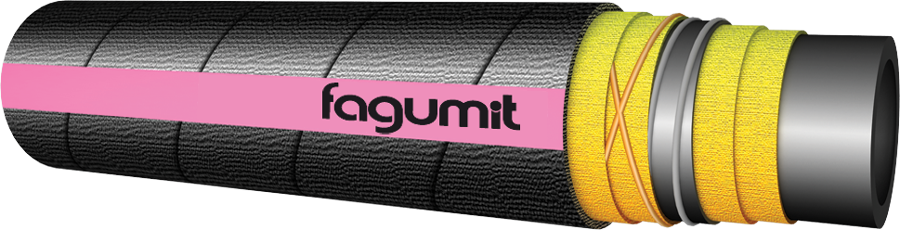

• suction and delivery hose type SD
• electric resistance of hose: max 106 Ω/m
• we can supply these hoses as ready hose assemblies
Inside diameter
mm | Wall thickness (approx.)
mm | Working press. / Bursting press.
MPa | Min. bending radius
mm | Length max
m |
|---|
| |
|
|
|
Typ D/Typ SD |
| 20 |
6 |
1 / 4 |
125 |
40/20 |
| 25 |
6 |
1 / 4 |
150 |
40/20 |
| 32 |
6 |
1 / 4 |
175 |
40/20 |
| 38 |
6,5 |
1 / 4 |
225 |
40/20 |
| 40 |
6,5 |
1 / 4 |
235 |
40/20 |
| 50 |
8 |
1 / 4 |
275 |
40/20 |
| 63 |
8 |
1 / 4 |
300 |
6,0* |
| 75 |
8 |
1 / 4 |
350 |
6,0* |
| 80 |
8 |
1 / 4 |
375 |
6,0* |
| 100 |
8 |
1 / 4 |
450 |
6,0* |
PN-EN-1761
PN-EN ISO 1307
* Sections of max. 10m - should be agreed with Sales and Marketing Department
