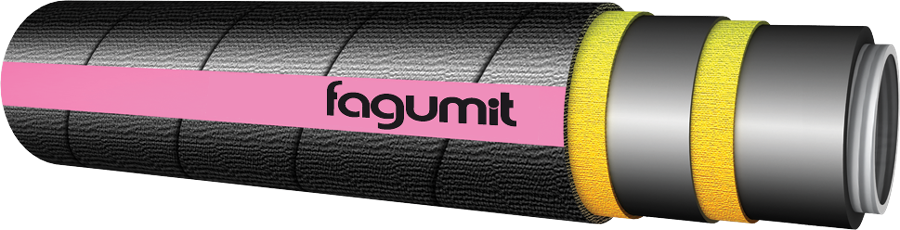

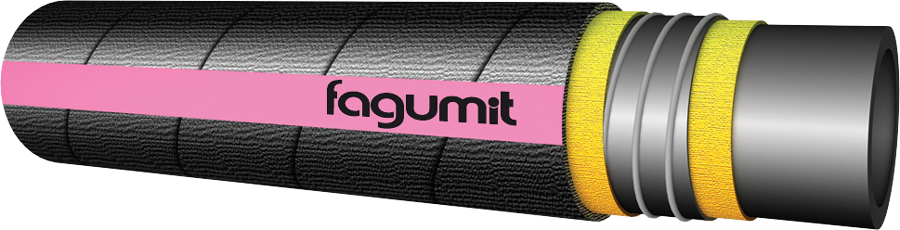

BITUMO SD

BITUMO SD
BITUMO SD

• used to flow of liquid asphalt mass, mazout, pitch for roofing, tar and their mixtures with subpressure up to 0.063 MPa

• temperature of flowing medium: max 150°C

• temperature of the conveyed medium for the hose with the metal insert: max +180°C

• tube: NBR, black

• reinforcement: textile, one or two steel wire coils

• cover: CR, black, resistant to atmospheric factors

• it is not recommended to discharging of road tankers


Inside diameter
mm
Wall thickness (approx.)
mm
Working pressure
MPa
Bursting pressure
MPa
Length max
m
20 36 0,6 1,2 10
25 41 0,6 1,2 10
31,5 48 0,6 1,2 10
35 51 0,6 1,2 10
38 54 0,6 1,2 10
40 56 0,6 1,2 10
45 61 0,6 1,2 10
50 66 0,6 1,2 10
63 81 0,6 1,2 10
70 88 0,6 1,2 10
75 93 0,6 1,2 10
80 98 0,6 1,2 10
90 108 0,6 1,2 10
100 118 0,6 1,2 10
110 128 0,4 0,8 10
125 143 0,4 0,8 10
150 168 0,4 0,8 10



WT-27/97

PN-EN ISO 1307
