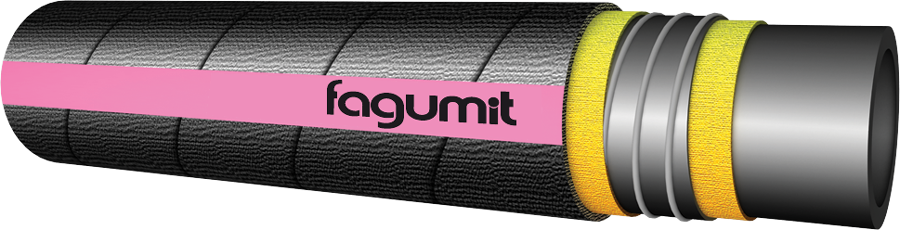

• robust, resistant to heavy working conditions and resistant to twisting and kinking hose assigned to suction and pumping of petrol and oils with subpressure up to 0.063 MPa
• working temp.: from -30°C up to 100°C
• tube: NBR, black, smooth
• reinforcement: textile and one or two steel wire coils
• clamps to carry away electric charges
• cover: NBR/PCV, black, resistant to atmospheric factors, ageing and ozone
Inside diameter
mm |
Wall thickness (approx.)
mm |
Working pressure
MPa |
Bursting pressure
MPa |
Length max
m |
| 20 |
6 |
1,6 |
4,8 |
20 |
| 25 |
6 |
1,6 |
4,8 |
20 |
| 31,5 |
6,5 |
1,2 |
3,6 |
20 |
| 35 |
6,5 |
1 |
3 |
20 |
| 38 |
6,5 |
1 |
3 |
20 |
| 40 |
6,5 |
1 |
3 |
20 |
| 45 |
6,5 |
0,8 |
2,4 |
20 |
| 50 |
6,5 |
0,8 |
2,4 |
20 |
| 63 |
7,5 |
0,7 |
2,1 |
10 |
| 70 |
7,5 |
0,6 |
1,8 |
10 |
| 75 |
7,5 |
0,6 |
1,8 |
10 |
| 80 |
7,5 |
0,6 |
1,8 |
10 |
| 90 |
7,5 |
0,4 |
1,2 |
10 |
| 100 |
7,5 |
0,4 |
1,2 |
10 |
| 110 |
7,5 |
0,4 |
1,2 |
10 |
| 125 |
8 |
0,3 |
0,9 |
10 |
| 150 |
8 |
0,3 |
0,9 |
10 |
| 200 |
9 |
0,2 |
0,6 |
6 |
| 250 |
10 |
0,2 |
0,6 |
10 |
| 300 |
10 |
0,2 |
0,6 |
6 |
WT-11/95
PN-EN ISO 1307
PN-76/C-94250/62
