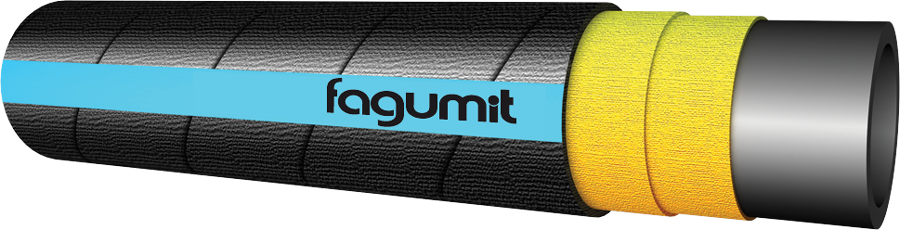

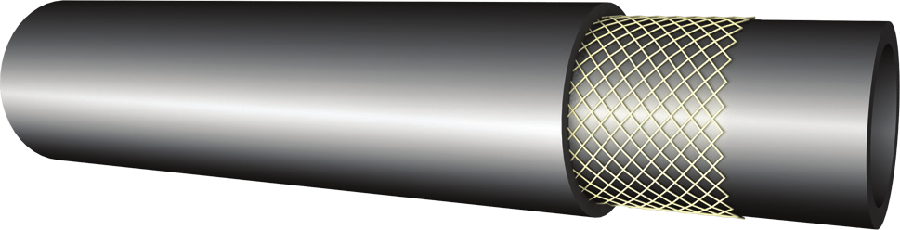

• high quality hose assigned to flow of of compressed air, water and some light chemicals
• working temp.: from -30°C up to 70°C
• tube: EPDM/SBR, black, smooth
• reinforcement: textile
• cover: EPDM/SBR, black, smooth or with cloth impression, resistant to atmospheric factors
• these hoses can be produced as coloured ones
Inside diameter
mm | Wall thickness (approx.)
mm | Working pressure
MPa | Bursting pressure
MPa | Length max
m |
|---|
| 6,3 |
3,5
|
1,0
|
5,0
|
50
|
| 8,0 |
3,5
|
1,0
|
5,0
|
50
|
| 10 |
3,5
|
1,0
|
5,0
|
50
|
| 12,5 |
3,5
|
1,0
|
5,0
|
50
|
| 16 |
3,7
|
1,0
|
5,0
|
50
|
| 19 |
5,0
|
1,5
|
7,5
|
40
|
| 20 |
5,0
|
1,5
|
7,5
|
40
|
| 25 |
5
|
1,5
|
7,5
|
40
|
| 31,5 |
5,2
|
1,2
|
6,0
|
40
|
| 35 |
7,1
|
1,2
|
6,0
|
20
|
| 38 |
7,1
|
1,2
|
6,0
|
20
|
| 40 |
7,1
|
1,2
|
6,0
|
20
|
| 45 |
7,1
|
1,2
|
6,0
|
20
|
| 50 |
7,2
|
1,2
|
6,0
|
20
|
| 63 |
6,0
|
0,4
|
2,0
|
10
|
| 75 |
6,0
|
0,4
|
2,0
|
10
|
| 80 |
6,0
|
0,4
|
2,0
|
10
|
| 90 |
6,0
|
0,4
|
2,0
|
10
|
| 100 |
6,0
|
0,4
|
3,0
|
10
|
| 110 |
6,0
|
0,6
|
2,5
|
10
|
| 125 |
6,5
|
0,5
|
2,5
|
10
|
WT-14/96
PN-EN ISO 1307
PN-86/C-94250/46
