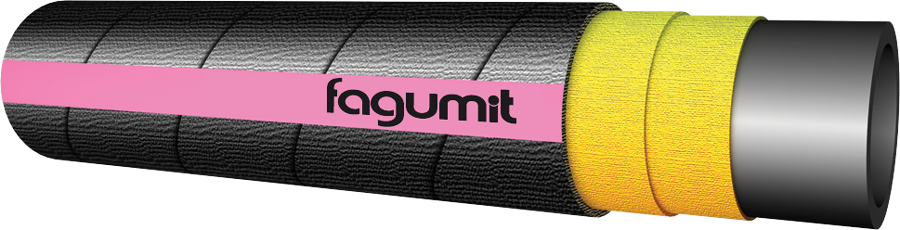

• flexible hose use in car systems to flow of petroleum fuels with content of aromatic hydrocarbons up to 50 %, including bioethanol ( oxygen compounds up to 15 %) and biodiesel fuel (80 % of diesel oil and 20 % of biocomponents - esters)
• working temp.: from -30°C up to 100°C, momentarily 125°C
• tube: NBR, black, smooth
• reinforcement: textile
• cover: NBR/PVC, black, resistant to atmospheric factors and high temperature
Inside diameter
mm |
Wall thickness (approx.)
mm |
Working pressure
MPa |
Bursting pressure
MPa |
Length max
m |
| 3,2 |
3,3 |
1 |
3 |
50 |
| 4 |
3,3 |
1 |
3 |
50 |
| 5 |
3,3 |
1 |
3 |
50 |
| 6,3 |
3,4 |
1 |
3 |
50 |
| 7 |
3,4 |
1 |
3 |
50 |
| 7,5 |
3,4 |
1 |
3 |
50 |
| 8 |
3,4 |
1 |
3 |
50 |
| 9 |
3,4 |
1 |
3 |
50 |
| 10 |
3,4 |
1 |
3 |
50 |
| 11 |
3,5 |
1 |
3 |
50 |
| 12 |
3,5 |
1 |
3 |
50 |
| 12,5 |
3,5 |
1 |
3 |
50 |
| 13 |
3,5 |
1 |
3 |
50 |
| 14 |
3,5 |
1 |
3 |
50 |
| 16 |
3,7 |
1 |
3 |
50 |
| 18 |
3,7 |
1 |
3 |
50 |
| 19 |
3,9 |
1 |
3 |
50 |
| 20 |
3,9 |
1 |
3 |
50 |
| 20 |
4 |
1 |
3 |
40 |
| 22 |
5 |
1 |
3 |
20 |
| 25 |
4 |
1 |
3 |
40 |
| 28 |
5 |
1 |
3 |
20 |
| 31,5 |
4 |
1 |
3 |
40 |
| 35 |
5,3 |
1 |
3 |
20 |
| 38 |
5,3 |
1 |
3 |
20 |
| 40 |
5,3 |
1 |
3 |
20 |
| 45 |
5,7 |
1 |
3 |
20 |
| 50 |
6,2 |
1 |
3 |
20 |
| 55 |
6 |
0,8 |
2,6 |
10 |
| 60 |
6 |
0,8 |
2,3 |
10 |
| 63 |
6 |
0,8 |
2,3 |
10 |
| 70 |
6 |
0,6 |
1,9 |
10 |
| 75 |
6 |
0,6 |
1,9 |
10 |
| 80 |
6 |
0,6 |
1,9 |
10 |
| 90 |
6 |
0,5 |
1,6 |
10 |
| 100 |
6 |
0,5 |
1,6 |
10 |
| 110 |
6 |
0,5 |
1,3 |
10 |
| 120 |
6 |
0,5 |
1,3 |
6 |
| 125 |
6 |
0,5 |
1,3 |
10 |
| 140 |
6 |
0,3 |
1 |
10 |
| 150 |
6 |
0,3 |
1 |
10 |
| 200 |
6 |
0,3 |
1 |
6 |
| 250 |
7 |
0,3 |
1 |
10 |
| 300 |
7 |
0,3 |
0,7 |
6 |
WT-33/11
PN-EN ISO 1307
