• assigned to flow of liquid gases conforming to DIN 51 622, propane, butane and their mixtures
• working temp.: from -25°C up to +70°C

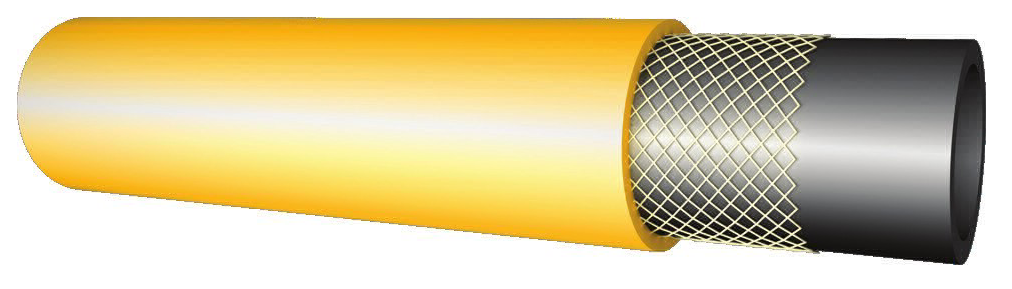

• tube: NBR, black, smooth
• reinforcement: textile, wrapped
• cover: EPDM, orange, smooth or corrugated, resistant to atmospheric factors
Inside diameter
mm |
Wall thickness (approx.)
mm |
Working pressure
MPa |
Bursting pressure
MPa |
Minimal bending
radius
mm
|
Length max
m |
| 4 |
3,5 |
1 |
2,5 |
45 |
50 |
| 6,3 |
3,5 |
1 |
2,5 |
68 |
50 |
| 9 |
3,5 |
1 |
2,5 |
95 |
50 |
| 4 |
4 |
3 |
7,5 |
45 |
50 |
| 6,3 |
5 |
3 |
7,5 |
68 |
50 |
| 8 |
5 |
3 |
7,5 |
85 |
50 |
| 10 |
5 |
3 |
7,5 |
85 |
50 |
DIN 4815
EN 16436-1
PN-EN ISO 1307
