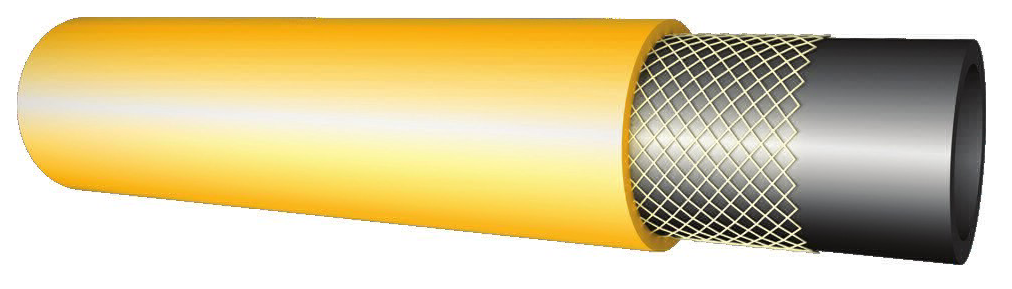

• assigned to flow of liquid gas, mixture of methylacetylene-propadiene and natural gas at: gas welding and cutting
• working temp.: from -30°C up to 70°C
• tube: NBR, black, smooth
• reinforcement: textile, wrapped
• cover: EPDM/SBR, orange, smooth or corrugated, resistant to atmospheric factors
Inside diameter
mm |
Wall thickness (approx.)
mm |
Working pressure
MPa |
Bursting pressure
MPa |
Length max
m |
| 4 |
3,5 |
2 |
6 |
50 |
| 5 |
3,5 |
2 |
6 |
50 |
| 6,3 |
3,5 |
2 |
6 |
50 |
| 8 |
3,5 |
2 |
6 |
50 |
| 9 |
3,5 |
2 |
6 |
50 |
| 10 |
3,5 |
2 |
6 |
50 |
| 12,5 |
3,5 |
2 |
6 |
50 |
| 16 |
3,7 |
2 |
6 |
50 |

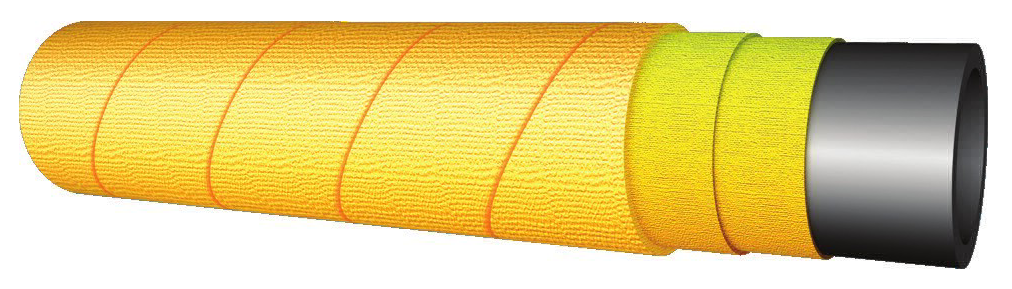

PROPAN HEAVY DUTY
Inside diameter
mm |
Wall thickness (approx.)
mm |
Working pressure
MPa |
Bursting pressure
MPa |
Length max
m |
| 12,5 |
5 |
2 |
6 |
50 |
| 16 |
5 |
2 |
6 |
40 |
| 19 |
5,3 |
2 |
6 |
40 |
| 20 |
5,3 |
2 |
6 |
40 |
| 25 |
5,3 |
2 |
6 |
40 |
| 31,5 |
6,3 |
2 |
6 |
40 |
| 35 |
6,6 |
2 |
6 |
40 |
| 38 |
6,7 |
2 |
6 |
20 |
| 40 |
6,7 |
2 |
6 |
20 |
| 45 |
6,8 |
2 |
6 |
20 |
| 50 |
6,8 |
2 |
6 |
20 |
PN-EN ISO 3821
PN-EN-559
PN-EN ISO 1307
LBS-01/04
