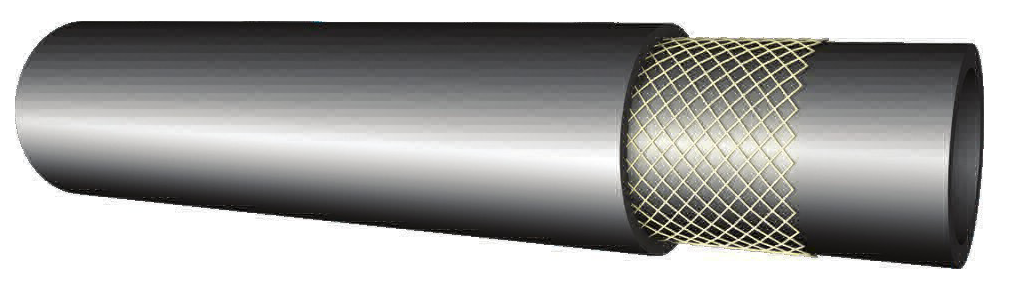

• multifunctional and flexible hose assigned to flow of compressed air with oil content, water and some light chemicals, used in compressors
• type-1 for compressed air with oil content
• type-2 for compressed air with high oil content
• working temp.; from -30°C up to +70°C
• tube: rubber, black, smooth, type-1 EPDM/SBR, type-2 NBR
• reinforcement: textile • cover: rubber, black, smooth, resistant to atmospheric factors type-1 EPDM/SBR, type-2 NBR
Inside diameter
mm | Wall thickness (approx.)
mm | Working pressure
MPa | Bursting pressure
MPa | Length max
m |
|---|
| 6,3 |
3,5 |
1 |
3 |
50 |
| 8 |
3,5 |
1 |
3 |
50 |
| 10 |
3,5 |
1 |
3 |
50 |
| 12,5 |
3,7 |
1 |
3 |
50 |
| 16 |
3,7 |
1 |
3 |
50 |
| 19 |
3,7 |
1 |
3 |
50 |
| 20 |
3,7 |
1 |
3 |
50 |
| 25 |
5 |
1 |
3 |
40 |
WT-48/09
PN-EN ISO 1307
