• robust and resistant to heavy working conditions hose applied in mining industry, assigned to flow of water, compressed air and their mixtures with sand or other solid substances

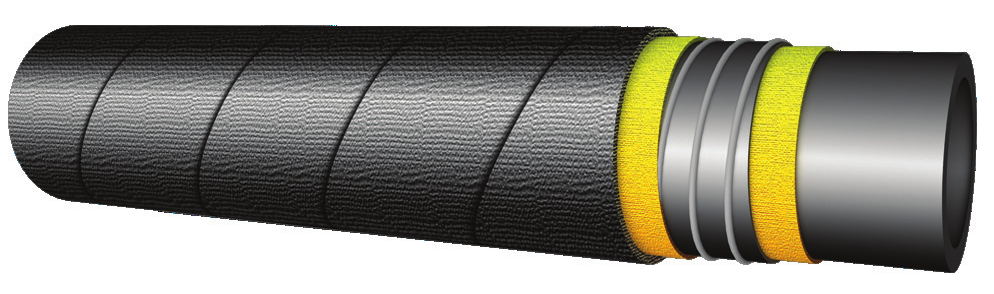

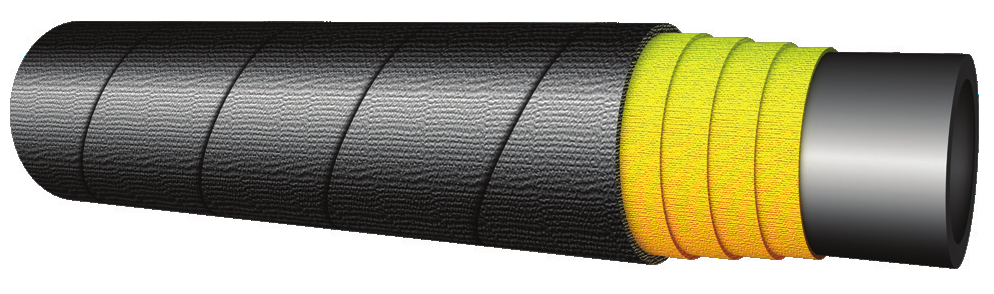

• These hoses are divided into two kinds: Z - ordinary hoses, S hoses protected with internal wire coil
• The hoses of each type and kind fulfil the same requirements
• The hoses of each type and kind can be made as abrasion-resistant hoses (abrasion-resistant tube). Such hoses receive additional marking (SC)
• working temp.: from -30°C up to 60°C
• tube: black
• reinforcement: polyamide, aramide1
• cover: regardless of the kind and type made of slow burning rubber compound
This product has the certificate of the Superior Mining Office.
Inside diameter
mm | Wall thickness (approx.) Z/S
mm | Working press. / Bursting press.
MPa | Kind
| Length max
m |
|---|
| |
Typ-10 |
Typ-16* |
Typ-30* |
Typ-10 |
Typ-16 |
Typ-30 |
|
|
| 6,1 |
3,5 |
3,5 |
- |
1 / 3 |
1,6 / 5,0 |
- |
Z |
50 |
| 8 |
5,1 |
- |
5,1 |
1 / 3 |
- |
3 / 7,5 |
Z |
20 |
| 10 |
5,1 |
- |
5,1 |
1 / 3 |
- |
3 / 7,5 |
Z |
20 |
| 12,5 |
5,1 |
- |
5,1 |
1 / 3 |
- |
3 / 7,5 |
Z |
20 |
| 16 |
5,3 |
- |
5,3 |
1 / 3 |
- |
3 / 7,5 |
Z |
40 |
| 20 |
5,3 / 6,5 |
5,3 / 6,5 |
5,3 / 6,5 |
1 / 3 |
1,6 / 5,0 |
3 / 7,5 |
Z / S |
40 / 10 |
| 25 |
5,3 / 6,5 |
5,3 / 6,5 |
5,3 / 6,5 |
1 / 3 |
1,6 / 5,0 |
3 / 7,5 |
Z / S |
40 / 10 |
| 31,5 |
5,3 / 7 |
- |
6,5 / 9,0 |
1 / 3 |
- |
3 / 7,5 |
Z / S |
40 / 10 |
| 40 |
5,5 / 7 |
- |
6,5 / 9,0 |
1 / 3 |
- |
3 / 7,5 |
Z / S |
20 / 10 |
| 50 |
5,5 / 8,5 |
6,5 / 9,0 |
6,5 / 9,0 |
1 / 3 |
1,6 / 5,0 |
3 / 7,5 |
Z / S |
20 / 10 |
| 63 |
7 / 9 |
- |
8,5 / 10,5 |
1 / 3 |
- |
3 / 7,5 |
Z / S |
10 |
| 75 |
7 / 9,5 |
- |
9,5 / 11,5 |
1 / 3 |
- |
3 / 7,5 |
Z / S |
10 |
| 80 |
7 / 9,5 |
- |
9,5 / 11,5 |
1 / 3 |
- |
3 / 6,0 |
Z / S |
10 |
| 100 |
7 / 10 |
8,5 / 11 |
9,5 / 12 |
1 / 3 |
1,6 / 5,0 |
3 / 6,0 |
Z / S |
10 |
| 110 |
7 / 10 |
- |
9,5 / 13 |
1 / 3 |
- |
3 / 5,0 |
Z / S |
10 |
| 125 |
8,5 / 10,5 |
- |
10,5 / 13 |
1 / 3 |
- |
3 / 5,0 |
Z / S |
10 |
| 150 |
8,5 / 12 |
- |
10,5 / 14 |
1 / 3 |
- |
3 / 5,0 |
Z / S |
10 |
* Working pressure for compressed air: Type 16 - 1,0 MPa; Type 30 - 1,5 MPa
PN-EN ISO 1307
ZN-05/FAGUMIT-1/
