• assigned to flow of compressed air
• applied to brake couplings for railway rolling stock
• working temp.: from -40°C up to +70°C

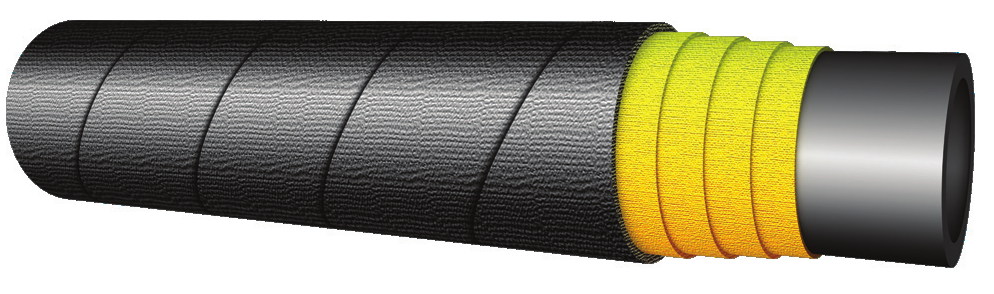

• tube: SBR, black, smooth
• reinforcement: textile
• cover: NR/EPDM, black with cloth impression
• We possess the hoses cut to specific lengths
This product has got the Conformity Certification of the Railway Institute
Inside diameter
mm |
Wall thickness (approx.)
mm |
Working pressure
MPa |
Bursting pressure
MPa |
Length max
m |
| 16 |
8 |
1 |
7 |
20 |
| 22 |
8 |
1 |
7 |
20 |
| 25 |
7 |
1 |
7 |
20 |
| 28 |
8 |
1 |
7 |
20 |
| 32 |
9 |
1 |
7 |
20 |
PN-EN 15807 (UIC 830-1)
PN-EN ISO 1307
PN-EN 45545
