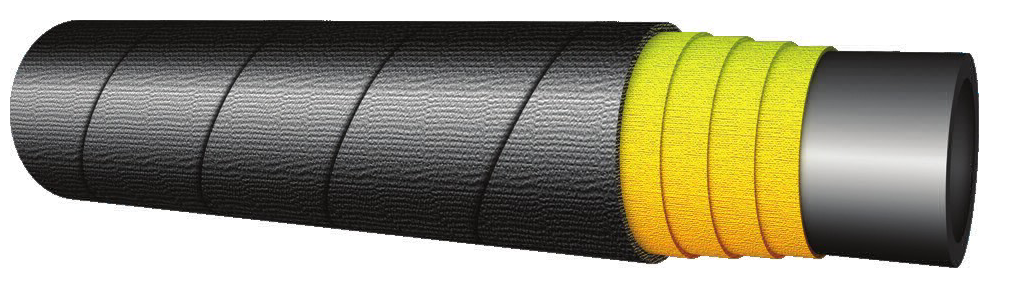

• assigned to flow of compressed air, for using in car air-brake systems
• oilproof version is assigned to flow of compressed air which contains big quantities of mineral oils and lubricants
• working pressure 1.0 MPa
• working temp.: from -40 °C up to 93°C (** from -30°C up to 93°C)
• tube: EPDM/SBR, (*NBR), (**NBR/PVC), black, smooth
• reinforcement: textile
• cover: EPDM/SBR, (**NBR/PVC), black, resistant to atmospheric factors
Inside diameter
mm |
Wall thickness (approx.)
mm |
Working pressure
MPa |
Bursting pressure
MPa |
Min. bending radius
mm
|
Length max
m |
| 9 |
18 |
1 |
6,3 |
90 |
20 |
| 10 |
17,5 |
1 |
6,3 |
100 |
50 |
| 11 |
20 |
1 |
6,3 |
102 |
20 |
| 13 |
20,5 |
1 |
6,3 |
102 |
50 |
| 13,0** |
20,5 |
1 |
6,3 |
102 |
50 |
| |
| 13,0* |
24 |
1 |
6,3 |
102 |
20 |
** oil proof
