Hoses

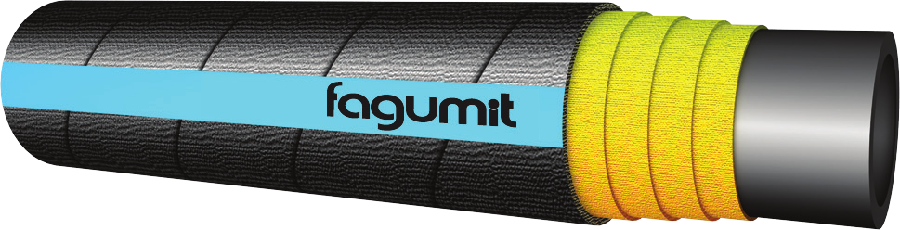

HOT HYDRO

HOT HYDRO

• high quality hose assigned to flow of hot water in industry and some light chemicals

• working temp.: from -45°C up to +120°C

• tube: EPDM, black

• reinforcement: textile

• cover: EPDM, black with cloth impression, resistant to high temperatures, ozone and atmospheric factors



Inside diameter
mm
Wall thickness (approx.)
mm
Outside diameter (approx.) mm Working pressure MPa Bursting pressure ​MPa Length max m
12,5 5 22,5 1 5 20
16 5 26 1 5 40
19 5 29 1 5 40
25 5 35 1 5 40
32 6 44 1 5 40
38 6 50 1 5 20
50 7,5 65 1 5 20
63 7,5 78 1 5 10
76 8 92 1 5 10
100 10 120 1 5 10



WT-45/05

PN-EN ISO 1307
