• assigned to dispensing of petroleum fuels with content of aromatic hydrocarbons up to 50 %, including bioethanol (fuel containing oxygen compounds up to 15 %) and biodiesel fuel ( 80 % of diesel oil and 20 % of biocomponents – esters) from the fuel distributors to cars tanks, excluding liquid petroleum gases (LPG)
• working temp.: from -40°C up to 55°C

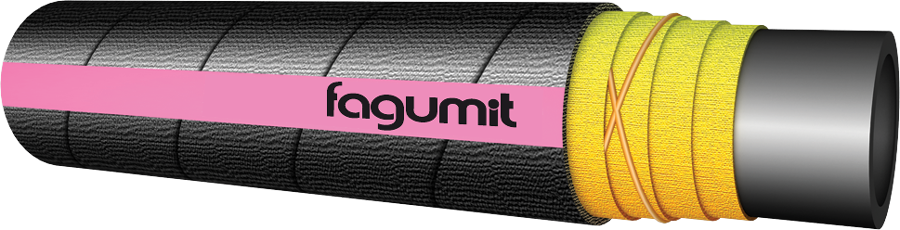

• tube: NBR/PVC, black, smooth, resistant to fuel
• reinforcement: textile, wrapped, and two crossed copper coils
• cover: CR ,black with cloth impression, resistant to fuel, abrasion and atmospheric factors
• maintains high flexibility in positive and negative temperatures
• electric resistance: max 1x 106 Ω/m
• We can supply these hoses as ready hose assemblies
Inside diameter
mm |
Wall thickness (approx.)
mm |
Working pressure
MPa |
Bursting pressure
MPa |
Minimal bending
radius
mm
|
Length max
m |
| 16 |
26 |
1,6 |
4,8 |
100 |
40 |
| 19 |
31 |
1,6 |
4,8 |
125 |
40 |
| 20 |
32 |
1,6 |
4,8 |
125 |
40 |
| 25 |
37 |
1,6 |
4,8 |
150 |
40 |
| 31,5 |
43,5 |
1,6 |
4,8 |
175 |
40 |
| 38 |
53 |
1,6 |
4,8 |
225 |
20 |
| 40 |
55 |
1,6 |
4,8 |
225 |
20 |
| 50 |
65 |
1,6 |
4,8 |
275 |
20 |
PN-EN ISO 1360
PN-EN ISO 1307
